At a glance
TD Series — TD Series Amplifier
| Frquency Response (1W 8ohms) | 20Hz-20KHz(±3dB) |
|---|---|
| Sensitivity (8ohms 1KHz) | 0.775v |
| Output connector | SPEAKON |
| unbalanced | 10KΩ |
| IMD (20Hz-20KHz,half power) | ≤0.02% |
| THD (20Hz-20KHz,half power) | ≤0.05% |
| speed ratio | ≥60V/µs |
| Dimension | 2U |
| Cooling system | All intelligent system automatic adjust with the change of temperature |
| Size (W×H×D) | 482×88×460mm |
| TD Series Amplifier | ||||
|---|---|---|---|---|

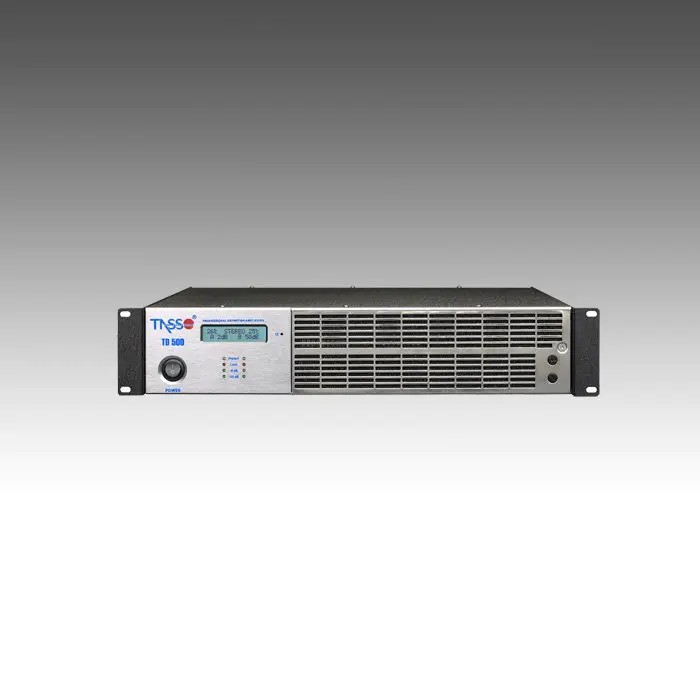

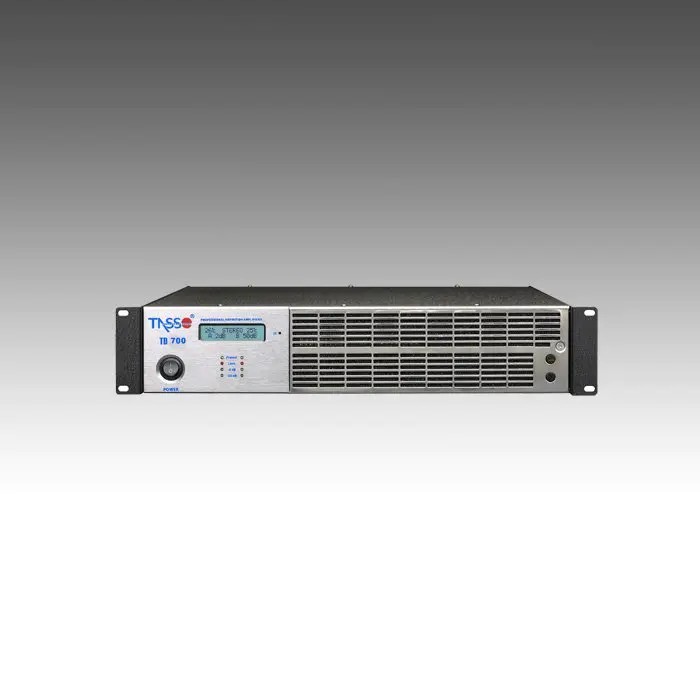

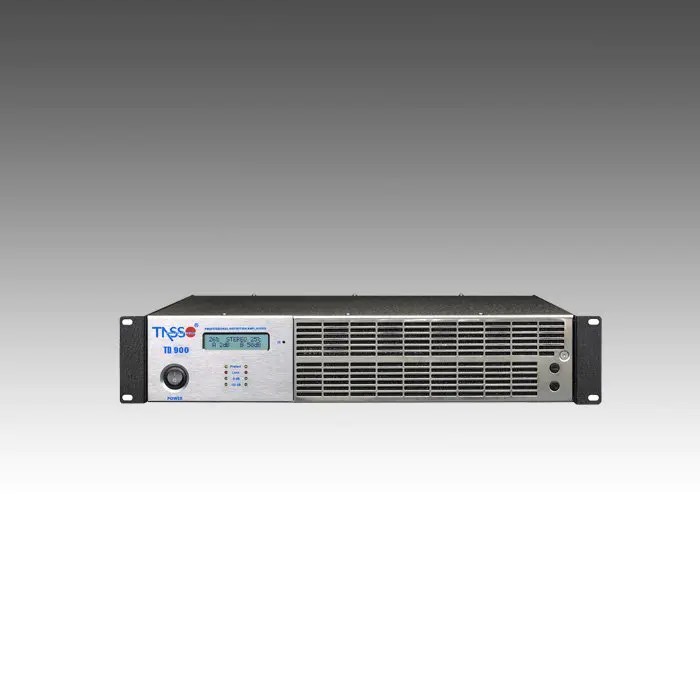

| Specification | TD500 | TD700 | TD900 | |
| Output Power | 8 Ω Stereo power(RMS) | 550W*2 | 750W*2 | 1000W*2 |
| 4 Ω Stereo power(RMS) | 850W*2 | 1150W*2 | 1500W*2 | |
| 8 Ω Bridge | 1350W | 1850W | 2350W | |
| Frquency Response（1W 8ohms） | 20Hz-20KHz(±3dB) | |||
| Sensitivity（8ohms 1KHz） | 0.775v | |||
| Connector | Input Connector | XLR male、Female | ||
| Output connector | SPEAKON | |||
| Input impedance | balanced | 20KΩ | ||
| unbalanced | 10KΩ | |||
| Crosstalk attenuation（20Hz-20KHz,RMS power 8ohms） | ≥65dB | |||
| SNR | ≥108dB | ≥105dB | ||
| Damping ratio（1KHz&8ohms） | ≥900 | ≥800 | ||
| IMD（20Hz-20KHz,half power） | ≤0.02% | |||
| THD（20Hz-20KHz,half power） | ≤0.05% | |||
| Phase response（1W&8ohms,20Hz-20KHz） | ≤±8° | ≤±10° | ||
| speed ratio | ≥60V/µs | |||
| Output circuit type | AB | Line array H | ||
| Power dissipation（Double track drive 4ohms,1/8RMS/230V） | 550W | 750W | 950W | |
| Dimension | 2U | |||
| Cooling system | All intelligent system automatic adjust with the change of temperature | |||
| Size（W×H×D） | 482×88×460mm | |||
| N.W | 18.3kg | 20.1g | 23.5kg |
