At a glance

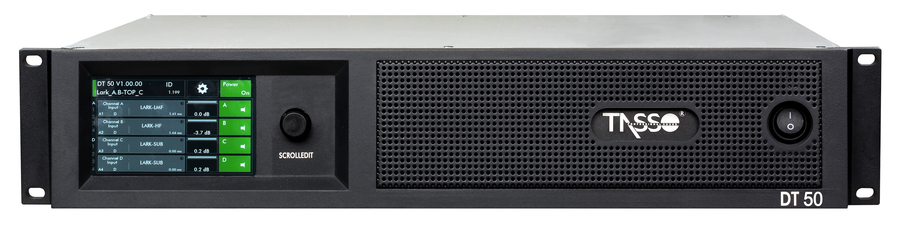

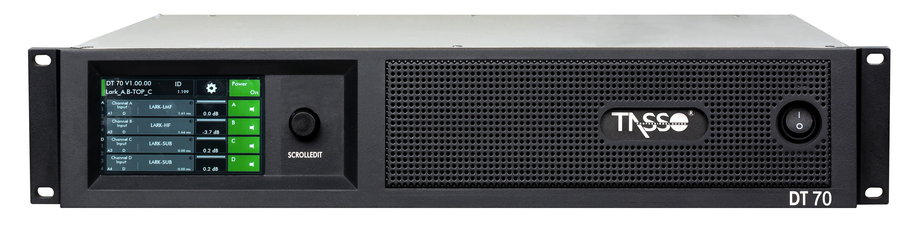

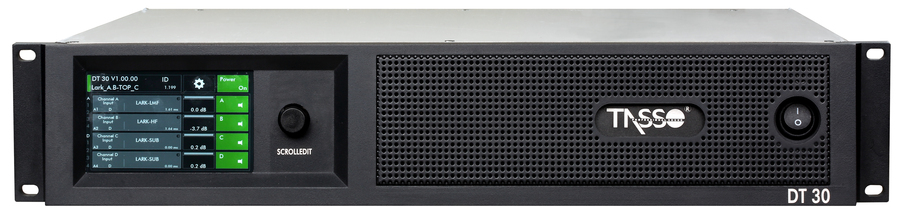

DT Series — DT Series Four-Channel Amplifier
| Number of channels | 4 channels |
|---|---|
| Power | 1400W*4/8Ω; 1600W*4/4Ω |
| Size | W:483(19"); D:423; H:88 mm (2U) |
| Weight | 11KG |
| Amplifier gain | 32dB |
| Digital/Analog Converter | 40 bit 96 kHz; Maximum dynamic range of 21dB input |
| Internal precision | 32-bit floating point |
| Delay | Maximum 200 milliseconds |
| Limiter | voltage effective value, current effective value, peak limiter, compressor |

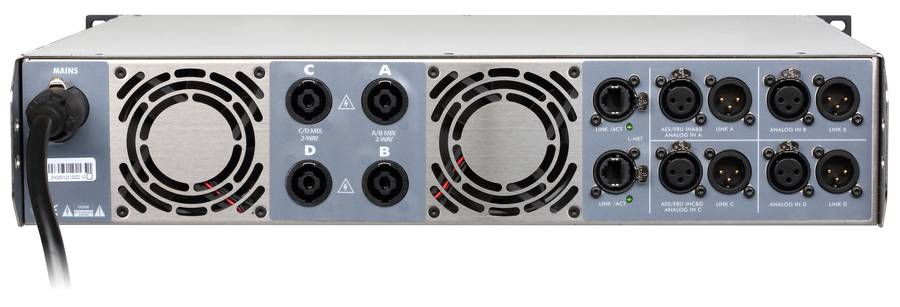

| Number of simulation channels | 4XLR (female) LINK -4 XLR (male) |
| Output connector | Speakon Neutrik (4 x nlt4) (NEUTIK terminal) |
| Power connector | POWE CON (NEUTIK terminal) |
| Cooling | Front and rear airflow, temperature controlled speed, |
| Nominal voltage | 100-250VAC 50-60 Hz |
| Working voltage | 100-130V 190-250V AC |
| Power characteristics | soft start/power supply |
| Chassis appearance structure | black painted steel chassis/aluminum front |
