At a glance
Active Sub Woofer With DSP · 18"×1 · 8Ω · 131dB
| ● 2 tops can be packaged into 1 sub | ● Sub cover can be used as a DJ table |
|---|---|
| MF | 10"; HF:2"×2 with horn |
| Type | Active Sub Woofer With DSP |
| Component | 18"×1 |
| Nominal Impedance | 8Ω |
| RMS Power Handling | 600W |
| Peak Power Handling | 1200W |
| Frequency Response | 40Hz-250Hz |
| Sensitivity(1W/1M) | 104dB |
| Max. SPL | 131dB |
| AMP Output | 600W+2×450W/8Ω RMS Digital Power Amp. |
| DSP | 2 In 4 Out DSP Module |
| Dispersions | N/A |
| Dimension HWD(mm) | 850×594×684 |
| Shipping HWD(mm) | 940×680×930(0.6CBM) |
| NW(Kg) | 71 |
| GW(Kg) | 128(include 2pcs H102 +1pcs DSP18A) |

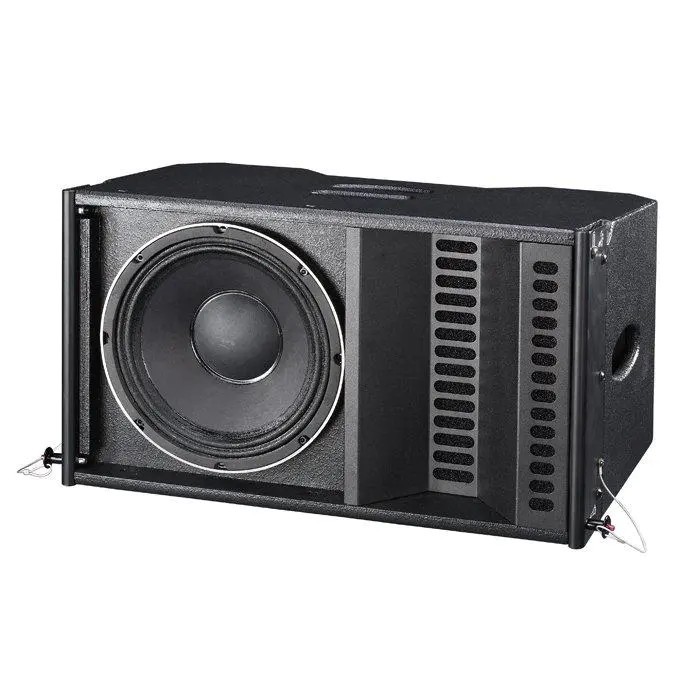

| H102 | ||
|---|---|---|
| Type / Component / Nominal Impedance / RMS Power Handling / Peak Power Handling / Frequency Response / Sensitivity（1W/1M） / Max. SPL / Dispersion / Horn throat size / Voice coil size / Crossover / Dimensions HWD（mm） / Shipping HWD（mm） / NW/GW（Kg） | Horn Loaded Mid-Hi(Powered by Celestion driver) / MF:10"; HF:2"×2 with horn / 8Ω / 350W / 700W / 55Hz-19KHz / 102dB / 130dB / 120°H×10°V / 1"(25mm) / 2"(44mm) / 1.5KHz / 314×540×314 / 380×610×390(0.09CBM) / 22/24(2pcs) | |
| DSP18A | ||
| Type / Component / Nominal Impedance / RMS Power Handling / Peak Power Handling / Frequency Response / Sensitivity(1W/1M) / Max. SPL / AMP Output / DSP / Dispersions / Dimension HWD(mm) / Shipping HWD(mm) / NW(Kg) / GW(Kg) | Active Sub Woofer With DSP / 18"×1 / 8Ω / 600W / 1200W / 40Hz-250Hz / 104dB / 131dB / 600W+2×450W/8Ω RMS / Digital Power Amp. / 2 In 4 Out DSP Module / N/A / 850×594×684 / 940×680×930(0.6CBM) / 71 / 128(include 2pcs H102 +1pcs DSP18A) |
Need T2 quoted?
Send quantities and your venue details — we reply with pricing, lead time and a coverage prediction.
