Description
Since the release of the T2 active sound system in 2011, TASSO has created a trend in the implementation of the performance of audio systems.
Its integrated design has been well accepted by users. On the single product of T2,TASSO adopts an iterative upgrade approach, undergoing 144 improvements and upgrades, and finally forging sound products that can stand the test of the market. In 2018,

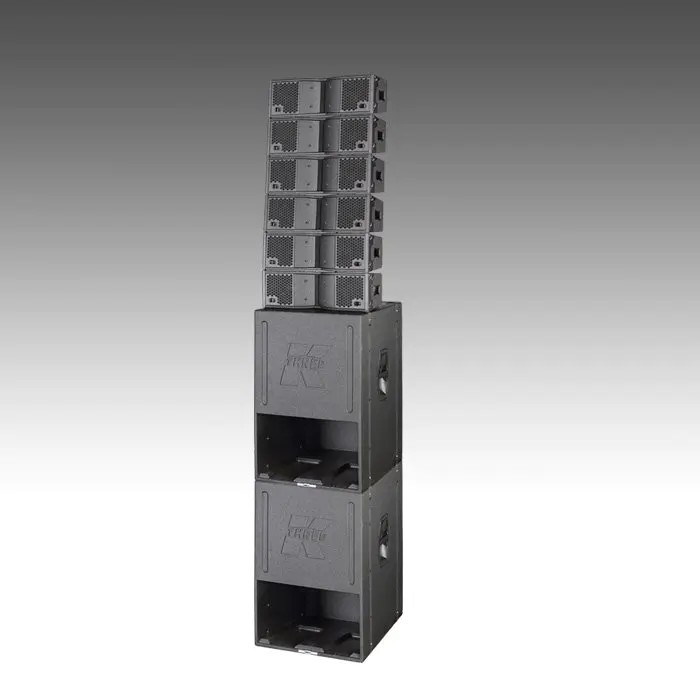

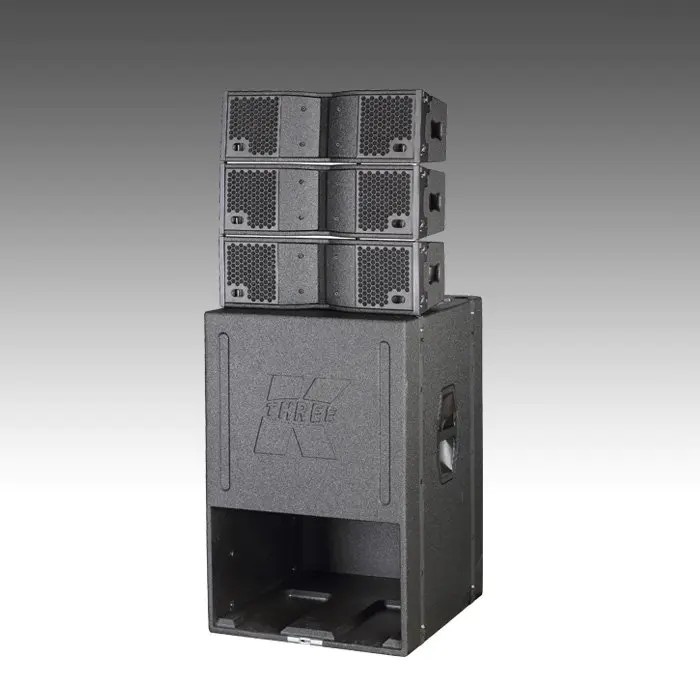

TASSO launched the latest generation of ultra-compact active sound system K3!
| Type | Dual 6.5" line array speaker |
|---|---|
| Component | MF:6.5"x2; HF:3"x1 with horn |
| Nominal Impedance | MF:16 ohms,HF:16ohms |
| RMS Power Handling | MF:300W,HF: 70W |
| Peak Power Handling | MF:750-1500 @ 8ohm,HF:150-300W @ 8ohm |
| Frequency Response | 130Hz-18KHz |
| Sensitivity (1W/1M) | MF:99dB(1W/1M),HF:110dB(1W/1M) |
| Max. SPL | 127dB |
| Dispersion | 110°Hx10°V |
| Voice coil size | 6.5" is using 18" voice coil |
| Dimensions HWD (mm) | 200x600x310mm |
| NW/GW (Kg) | 18KG |
| Program power | 2400W |
| Sensitivity(1W/1M) | 99dB |
| AMP Output | 3000W(bridged)+2x1000W/8ohm |
| DSP | Digital Power Amp. 2 In 4 Out DSP Module |
| Dispersions | N/A |
| Dimension HWD(mm) | 900×600x660mm |
| NW(Kg) | 86KG |

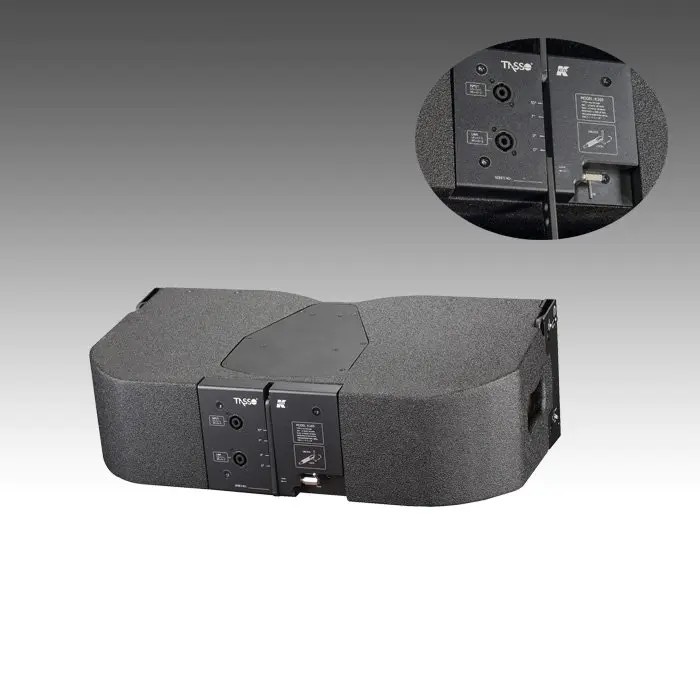

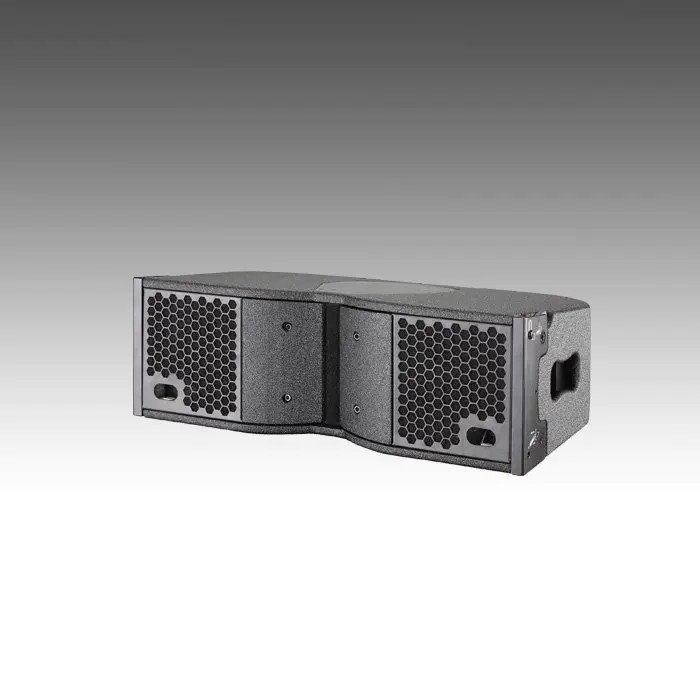

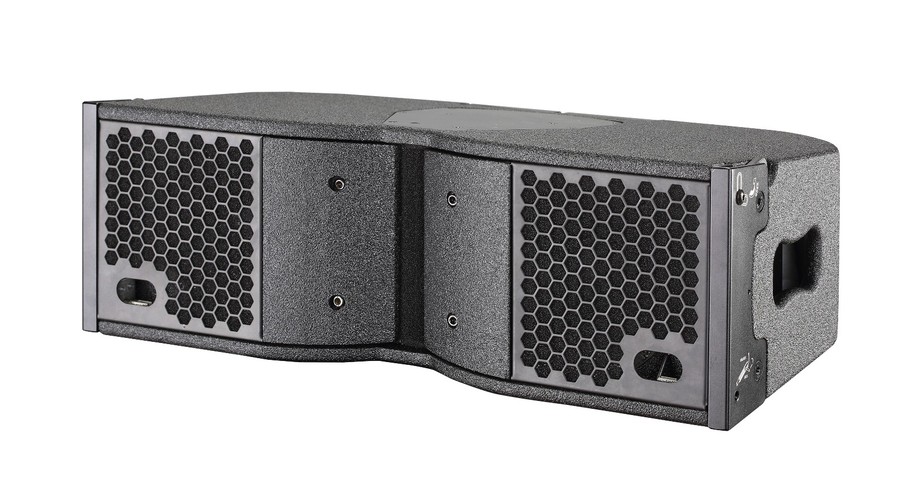

| K653 | ||
|---|---|---|
| Type / Component / Nominal Impedance / RMS Power Handling / Peak Power Handling / Frequency Response / Sensitivity（1W/1M） / Max. SPL / Dispersion / Voice coil size / Dimensions HWD（mm） / NW/GW（Kg） | Dual 6.5" line array speaker / MF:6.5"x2; HF:3"x1 with horn / MF:16 ohms,HF:16ohms / MF:300W,HF: 70W / MF:750-1500 @ 8ohm,HF:150-300W @ 8ohm / 130Hz-18KHz / MF:99dB(1W/1M),HF:110dB(1W/1M) / 127dB / 110°Hx10°V / 6.5" is using 18" voice coil / 200x600x310mm / 18KG | |

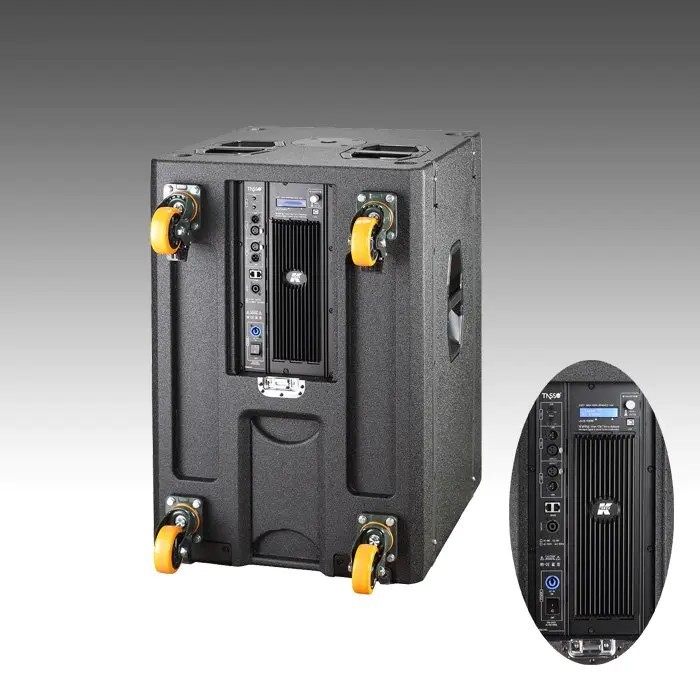

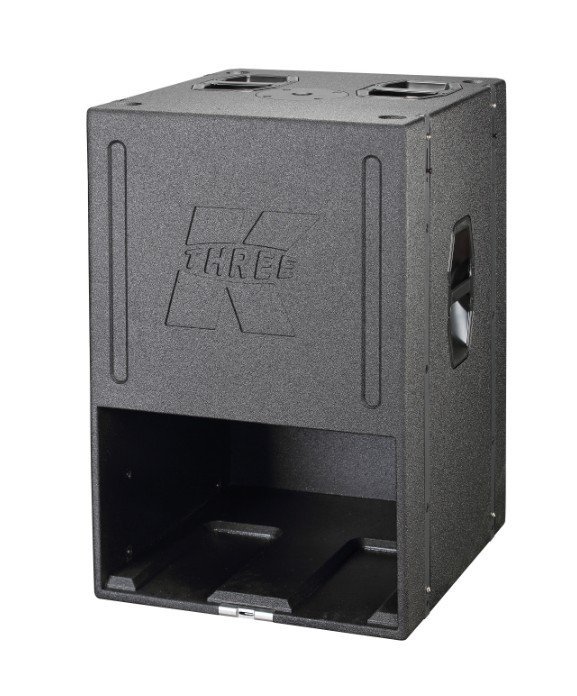

| K118DA | ||
| Type / Component / Nominal Impedance / RMS Power Handling / Program power / Frequency Response / Sensitivity(1W/1M) / Max. SPL / AMP Output / DSP / Dispersions / Dimension HWD(mm) / NW(Kg) | Active Sub Woofer With DSP / 18"×1 / 8Ω / 1200W / 2400W / 40Hz-200Hz / 99dB / 129dB / 3000W(bridged)+2x1000W/8ohm / Digital Power Amp. / 2 In 4 Out DSP Module / N/A / 900×600x660mm / 86KG |
Need K3 quoted?
Send quantities and your venue details — we reply with pricing, lead time and a coverage prediction.
