Description
T2+ Pro is consisting of an Neodymium 18'' suc (DSP18A+ with built-in DSP)plus 2 satellite speakers H102+ Pro
H102+ Pro can be inserted into the bottom space of DSP18A+ during the transportation.

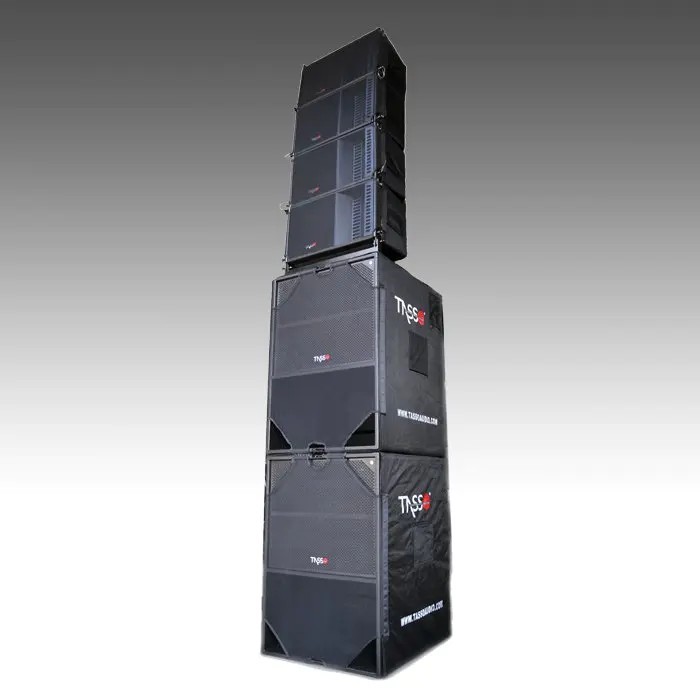

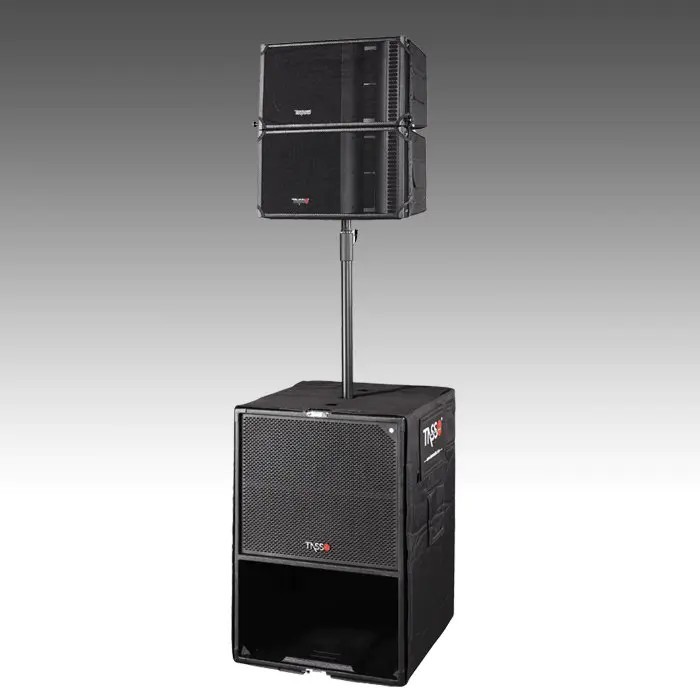

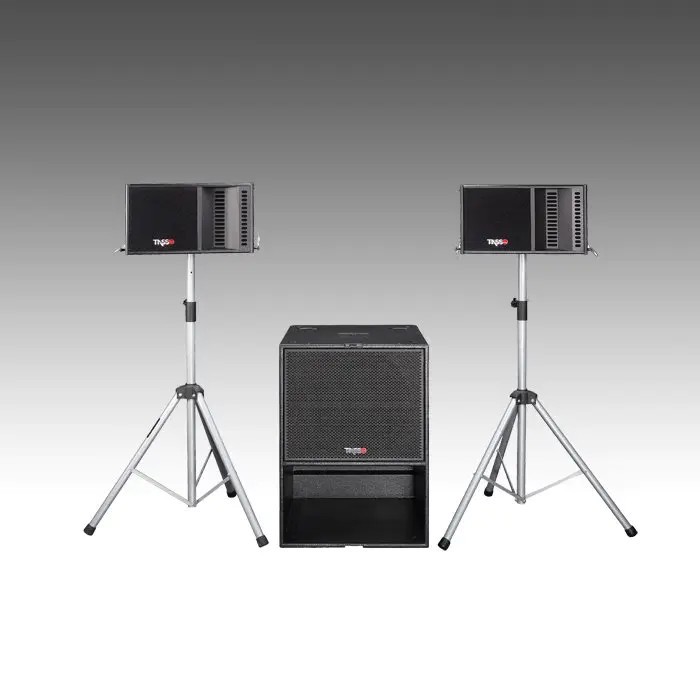

T2+ Pro active multi-purpose speaker system can be used in various ways: transport or stack. Its box size,shape, weight and equipment are designed for easy transport and handing.
T2+ Pro active multi-purpose speaker system through the powerful and visualized amplifier module, can achieve various module combination of acoustics, T2+ Pro active system is the best choice to high quality project.
| MF | 10"; HF:3"×1 with horn |
|---|---|
| LF | 400W, HF:150W |
| Type | Active Sub Woofer W/DSP(Neodymium Woofer) |
| Component | 18''x1 |
| Nominal Impedance | 8Ω |
| RMS Power Handling | 600W |
| Peak Power Handling | 2400W |
| Frequency Response | 35Hz-250Hz |
| Sensitivity(1W/1M) | 104dB |
| Max. SPL | 131dB(Peak 137dB) |
| AMP Power Handling | 2400W+2×1000W/8Ω |
| Power Supply | AC 90V-264V 50/60Hz |
| DSP | 2 In 4 Out DSP Module |
| Dispersions | N/A |
| Dimension HWD(mm) | 850×594×684 |
| Shipping HWD(mm) | 940×680×930(0.6CBM) |
| NW(Kg) | 64 |
| GW(Kg) | 113(include 2pcs H102+ +1pcs DSP18A+) |

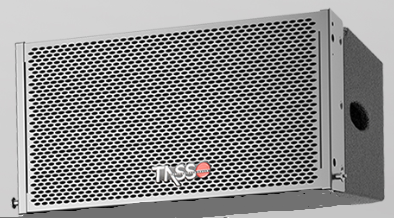

| H102+ PRO | ||
|---|---|---|
| Type / Component / Nominal Impedance / RMS Power Handling / Peak Power Handling / Frequency Response / Sensitivity（1W/1M） / Max. SPL / Dispersion / Horn throat size / Voice coil size / Crossover / Dimensions HWD（mm） / Shipping HWD（mm） / NW/GW（Kg） | Horn Loaded Mid-Hi(Neodymium Compression Driver & Woofer) / MF:10"; HF:3"×1 with horn / 16Ω / LF:400W, HF:150W / LF:1600W,HF:600W / 55Hz-19KHz / 103dB / 130dB / 120°H×10°V / 1.4"(38mm) / 3"(75mm) / 1.5KHz / 314×540×314 / 380×610×390(0.09CBM) / 20/40(2pcs) | |
| DSP18A+ PRO | ||
| Type / Component / Nominal Impedance / RMS Power Handling / Peak Power Handling / Frequency Response / Sensitivity(1W/1M) / Max. SPL / AMP Power Handling / Power Supply / DSP / Dispersions / Dimension HWD(mm) / Shipping HWD(mm) / NW(Kg) / GW(Kg) | Active Sub Woofer W/DSP(Neodymium Woofer) / 18''x1 / 8Ω / 600W / 2400W / 35Hz-250Hz / 104dB / 131dB(Peak 137dB) / 2400W+2×1000W/8Ω / AC 90V-264V 50/60Hz / 2 In 4 Out DSP Module / N/A / 850×594×684 / 940×680×930(0.6CBM) / 64 / 113(include 2pcs H102+ +1pcs DSP18A+) |
Need T2+ PRO quoted?
Send quantities and your venue details — we reply with pricing, lead time and a coverage prediction.
