Description

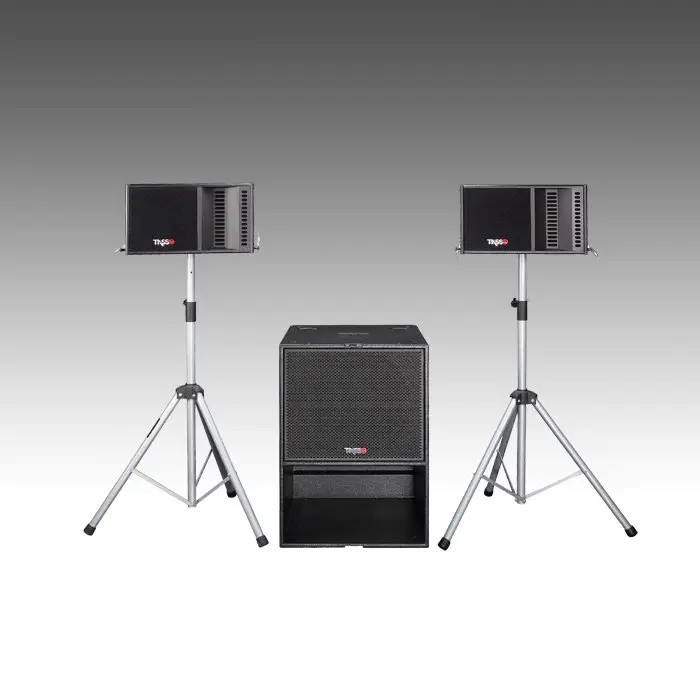

T2+ is consisting of an Neodymium 18'' suc (DSP18A+ with built-in DSP)plus 2 satellite speakers H102+.

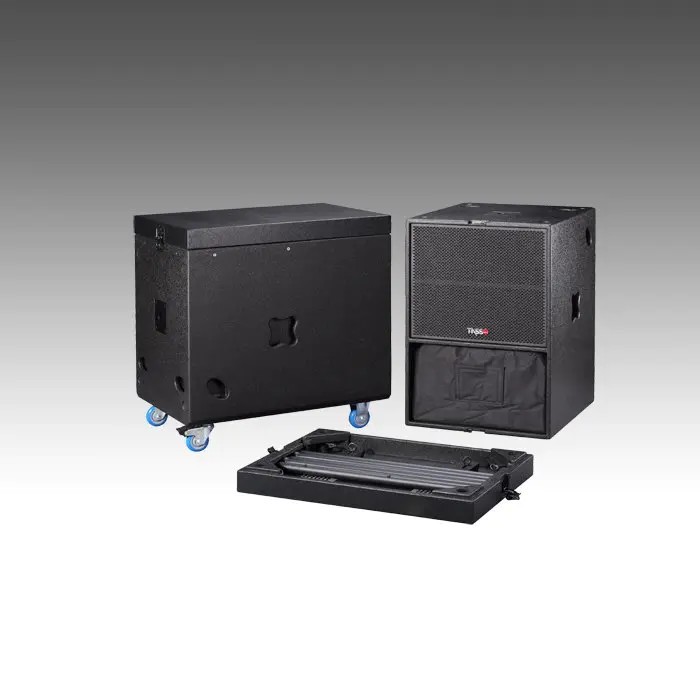

H102+ can be inserted into the bottom space of DSP18A+ during the transportation.
T2+ active multi-purpose speaker system can be used in various ways: transport or stack. Its box size,shape, weight and equipment are designed for easy transport and handing.
T2+ active multi-purpose speaker system through the powerful and visualized amplifier module, can achieve various module combination of acoustics, T2+ active system is the best choice to high quality project.
| Type | Horn Loaded Mid-Hi(Powered by Celestion driver) |
|---|---|
| Component | (Neodymium Compression Driver & Woofer) MF:10"; HF:2"×2 with horn |
| Nominal Impedance | 8Ω |
| RMS Power Handling | 350W |
| Peak Power Handling | 700W |
| Frequency Response | 55Hz-19KHz |
| Sensitivity (1W/1M) | 103dB |
| Max. SPL | 130dB |
| Dispersion | 120°H×10°V |
| Horn throat size | 1"(25mm) |
| Voice coil size | 2"(44mm) |
| Crossover | 1.7KHz |
| Dimensions HWD (mm) | 314×540×314 |
| Shipping HWD (mm) | 380×610×390(0.09CBM) |
| NW/GW (Kg) | 18/36(2pcs) |
| Sensitivity(1W/1M) | 105dB |
| AMP Output | 600W+2×450W/8Ω RMS Digital Power Amp. |
| DSP | 2 In 4 Out DSP Module |
| Dispersions | N/A |
| Dimension HWD(mm) | 850×594×684 |
| Shipping HWD(mm) | 940×680×930(0.6CBM) |
| NW(Kg) | 65 |
| GW(Kg) | 115(include 2pcs H102+ +1pcs DSP18A+) |
| H102+ | ||
|---|---|---|
| Type / Component / Nominal Impedance / RMS Power Handling / Peak Power Handling / Frequency Response / Sensitivity（1W/1M） / Max. SPL / Dispersion / Horn throat size / Voice coil size / Crossover / Dimensions HWD（mm） / Shipping HWD（mm） / NW/GW（Kg） | Horn Loaded Mid-Hi(Powered by Celestion driver) / (Neodymium Compression Driver & Woofer) / MF:10"; HF:2"×2 with horn / 8Ω / 350W / 700W / 55Hz-19KHz / 103dB / 130dB / 120°H×10°V / 1"(25mm) / 2"(44mm) / 1.7KHz / 314×540×314 / 380×610×390(0.09CBM) / 18/36(2pcs) | |
| DSP18A+ | ||
| Type / Component / Nominal Impedance / RMS Power Handling / Peak Power Handling / Frequency Response / Sensitivity(1W/1M) / Max. SPL / AMP Output / DSP / Dispersions / Dimension HWD(mm) / Shipping HWD(mm) / NW(Kg) / GW(Kg) | Active Sub Woofer With DSP(Neodymium Woofer) / 18"×1 / 8Ω / 500W / 1000W / 40Hz-250Hz / 105dB / 131dB / 600W+2×450W/8Ω RMS / Digital Power Amp. / 2 In 4 Out DSP Module / N/A / 850×594×684 / 940×680×930(0.6CBM) / 65 / 115(include 2pcs H102+ +1pcs DSP18A+) |
