Description

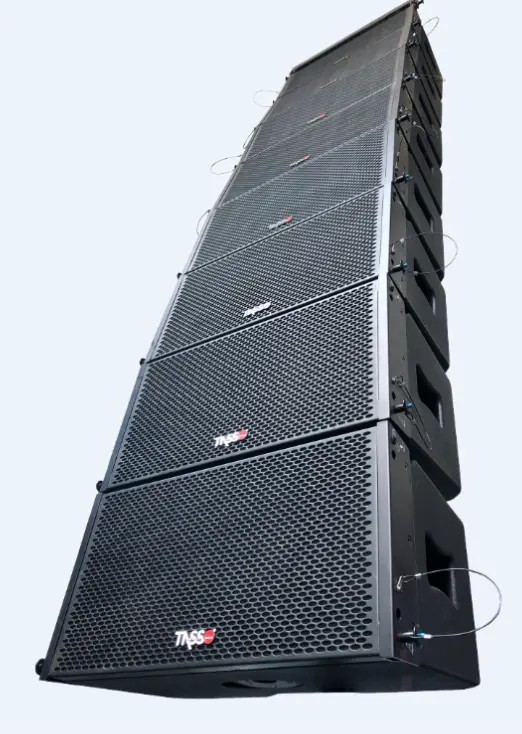

Pro dj audio +professional audio system + waveguide 10" line arraySound System

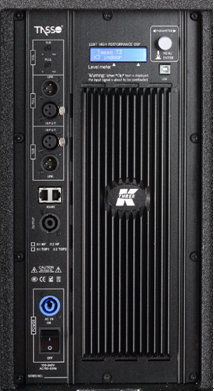

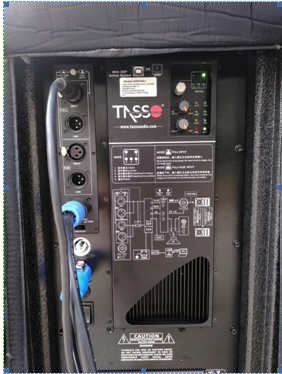

The power amplifier module is designed for 4 channels, two of which are bridged to drive subwoofer in the T2 system, and other two channels to drive 2pcs top speakers respectively. The power amplifier module is equipped with PFC, namely active power factor correction, and its power utilization rate is over 90%. Therefore, the power amplifier is not only more powerful, but also more energy saving and lower heat generation, which also brings more abundant stability factors.
| Type | Active Subwoofer |
|---|---|

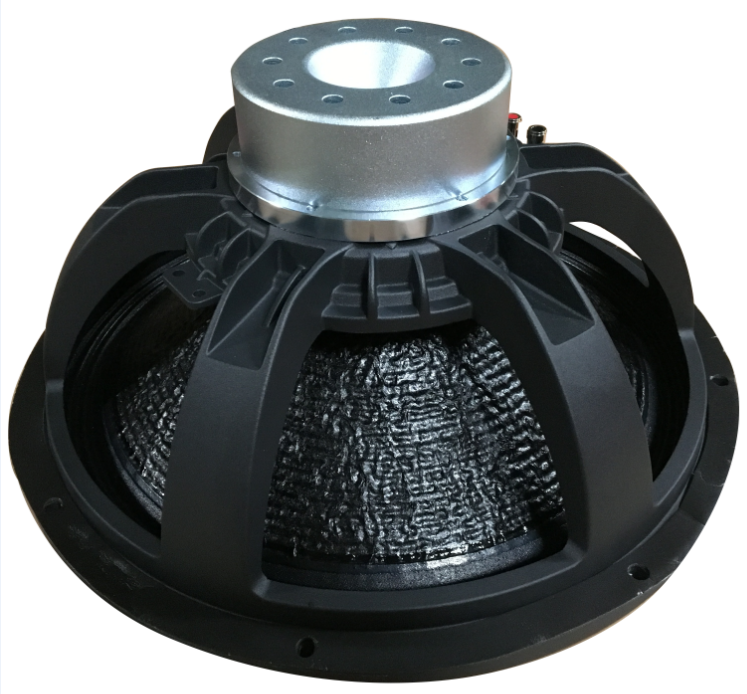

| Component | 1x18" Cone Speaker unit |
| Frequency range (-10dB) | 30Hz-400Hz |
| Frequency Response (±3dB) | 35Hz-250Hz |
| RMS Power Handling | 1200W |
| Program Power Handling | 2400W |
| Peak Power Handling | 4800W |
| Nominal Impedance | 8Ω |
| Sensitivity(1W/1M)(1W/1M) | 104dB |
| Output sound pressure level | 134dB(Peak140dB) |
| Amplifier output | 2400W+2×1000W(8Ω) |
| Power supply | AC~90V-264V |
| Processor | 2 inputs 4 outputs each input channel has gain, equalization, crossover, noise gating, delay. Each output contains phase polarity, gain, delay, equalization, crossover, limiter, mute switch module |
| Voice coil | 100mm(4”) |
| Signal connector | 1xNL4 output socket, 2×analog input and connect via XLR |
| Connections | Self stacking, Accessories included |
| Color | Black |
| Cabinet | Birch plywood, environmental Protection paint |
| Suitable bracket | Speaker Hanging Frame |
| Dimension HWD(mm) | 690x542x745 |
| Shipping Dimension HWD(mm) | 1160*620*920 ( 0.66CBM) |
| Frequency Response | 55Hz-19KHz |
| Sensitivity (1W/1M) | 103dB |
| Max. SPL | 130dB |
| Dispersion | 120°H×10°V |
| Horn throat size | 1"(22mm) |
| Voice coil size | 1.75"(44mm) |
| Crossover | 1.5KHz |
| Dimensions HWD (mm) | 314×540×314 |
| Shipping HWD (mm) | 380×610×390(0.09CBM) |
| NW/GW (Kg) | 22/44 |
| T2 Module | New K3 Module |
| T2 Module | New K3 Module | |
|---|---|---|
| Amplifier channels | 3 | 4（2 channels bridged to drive subwoofer） |
| Rated Power Handling（8Ω） | 600W+2×450W | 2400W+2×1000W |
| Power Converter | Not including PFC | Include PFC global voltage |
| Rated voltage | AC~160V-250V | AC~90V-264V |
| Power factor | 0.8 | ＞0.9@ 4Ωfull power |
| DSP Sampling rate | 48K 32BIT | 48K 32BIT |
| Software | T2 DSP online software | Suitable to T2 online software |
| Connector | USB | Available for USB and RS485 |
| Usage Pattern | 4 grade，Range switch | 50 grade for user setting, 10 grade factory preset and digit menu. |
| Maximum working temperature | 60℃ | 65℃ |
