Description

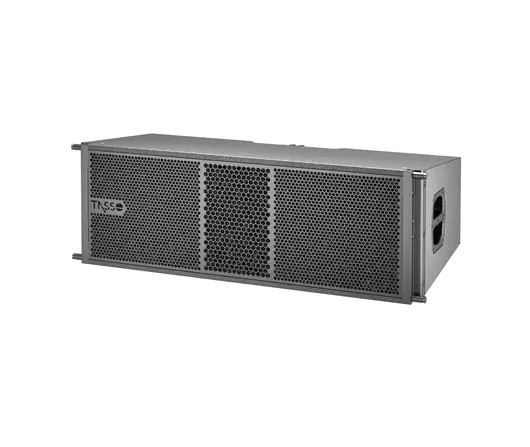

The EL2123 represents a high-quality, two-way full-range line array speaker system featuring neodymium-iron-boron drivers for exceptional performance. This comprehensive system is designed to deliver powerful, balanced audio across a wide range of frequencies, making it an ideal choice for various audio applications.

This system boasts an impressive frequency response range, ensuring clear and balanced audio from deep bass to crisp highs. The use of neodymium-iron-boron drivers not only enhances the sound quality but also contributes to a lighter and more efficient design. The built-in crossover network provides flexibility, allowing users to switch between passive and active crossover modes as needed.

With a maximum SPL of 139dB peak, the EL2123 is capable of producing incredibly loud and powerful sound, making it suitable for large venues and demanding audio applications. The system's dispersion angle ensures wide and even coverage, further enhancing the overall listening experience.

In conclusion, the EL2123 Dual 12" Full-Range Passive Speaker System offers exceptional audio performance, versatility, and durability, making it a top choice for professionals in the audio industry.

Specifications — as published by the factory
Type2-way Full-Range Line Array Speaker with Neodymium-Iron-Boron Drivers
Crossover NetworkIntegrated Passive Crossover with Switchable Active Crossover Mode Option
ImpedanceFull/LF: 8Ω; HF: 8Ω
Average Power HandlingFull/LF: 800W; HF: 100W
Peak Power HandlingFull/LF: 3200W; HF: 400W
Frequency Response50Hz - 20kHz (-10dB)
DSP Configurable Frequency Band85Hz - 19kHz (±3dB)
Sensitivity (1W/1M)Full/LF: 104 dB; HF: 113 dB
Maximum SPL139dB Peak
Dispersion Angle100° - 7°
Dimensions (WHD)1004mm × 356mm × 456mm
Net Weight38KG
