Description

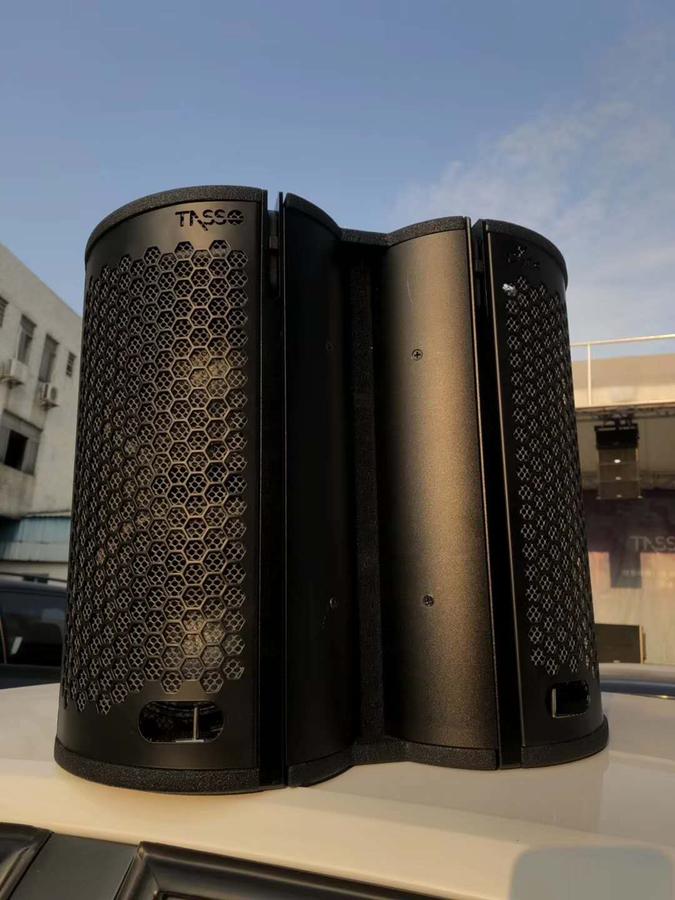

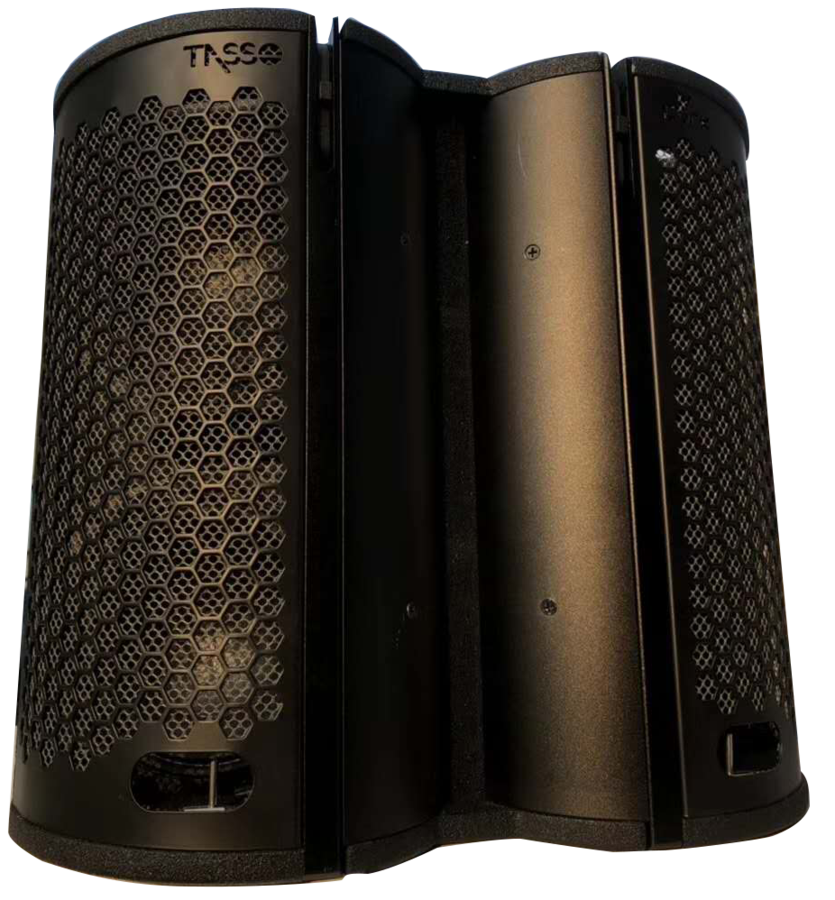

Each A7 consist of 4 pcs 6.5” composite cone disc low-frequency speaker units and 3 pcs high-frequency compressors with wave guides. 4 medium-low frequency speaker units are installed in a tight vertical direction in accordance with the central axis symmetry. Theoretically, the sound pressure level can be increased by 12dB per speaker. The three high-frequency modules are arranged in vertical direction and the sound pressure level is about 9.5dB higher than that of single module.
A-One is an “All in ONE” line array sound system which comprehensively solves a series difficulties like performance, sound quality and integration. And insist Tasso’s concept of “Modularization”

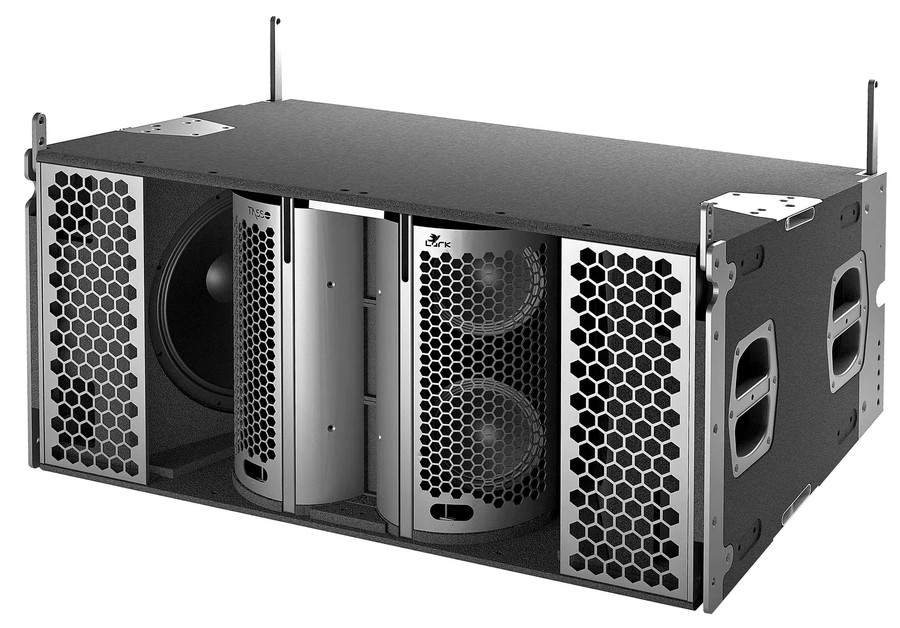

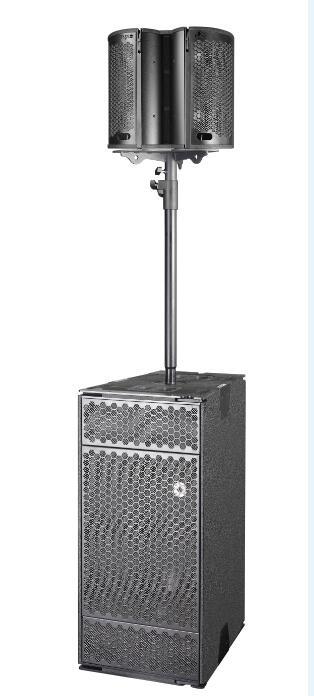

A-one system take” Full Scene use” as the design goal. Basic system configuration consists of 1 hybrid line source technology full range speaker module A7 and 1 low-frequency module A212BA that can be “Nested” on the periphery of A7 to make it to dual 12” big line array sound system, also configuration with built-in DSP amplifier module，just plug and play.
| A-ONE | ||
|---|---|---|
| A7 | ||
| Type / Component / Frequency response(-10dB) / Peak Power Handling / Nominal Impedance / Dispersion / RMS Power Handling(AES) / Sensitivity（1W/1M） / Dimension HWD(mm) / GW(Kg) | Ultra-compact hybrid line source arrayFull range speaker / 4 x 6.5"+3 x 1.5" / 80Hz-19KHz / L:137dB SPL peak; H:142dB SPL peak" / L:8Ω H:5.3Ω / 140°Hx10°V / L:1000W H:90W / L:101dB H:117dB / 395x420x280MM / 17Kg | |

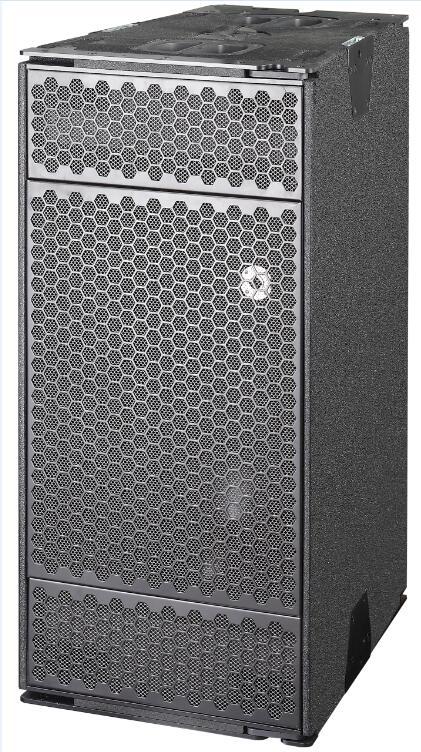

| A212BA | ||
| Type / Component / Frequency response(-10dB) / Max SPL / Nominal Impedance / RMS Power Handling(AES) / Sensitivity（1W/1M） / Dimension HWD(mm) / GW(Kg) | Active Subs / 2 x 12" Neodymium woofer / 42Hz-250Hz / 140dB SPL peak / 4Ω / 1000W / 104dB / 425x900x580MM / 54Kg |
