At a glance
Linear Array Low-Frequency… · 138dB peak

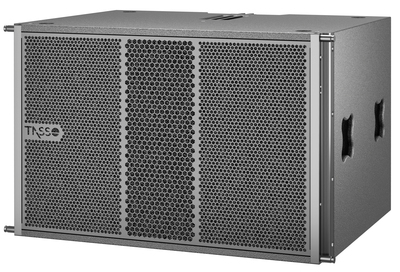

| Type | Linear Array Low-Frequency Loudspeaker (Full NdFeB Unit) |
|---|---|
| Unit Composition | 2 × 15" NdFeB Cone Woofer with 4" Voice Coil |
| Crossover Network | None |
| Impedance | 4Ω |
| Average Power | 1200W |
| Peak Power | 4800W |
| Frequency Response | 40Hz-400Hz (-10dB) |
| DSP Set Frequency Band | 50Hz-100Hz (±3dB) |
| Sensitivity (1W/1M) | 101dB |
| Maximum Sound Pressure Level | 138dB peak |
| Dispersion Angle | N/L |
| Product Dimensions (WHD) | 886*580*680mm |
| Net Weight | 66KG |
