Description

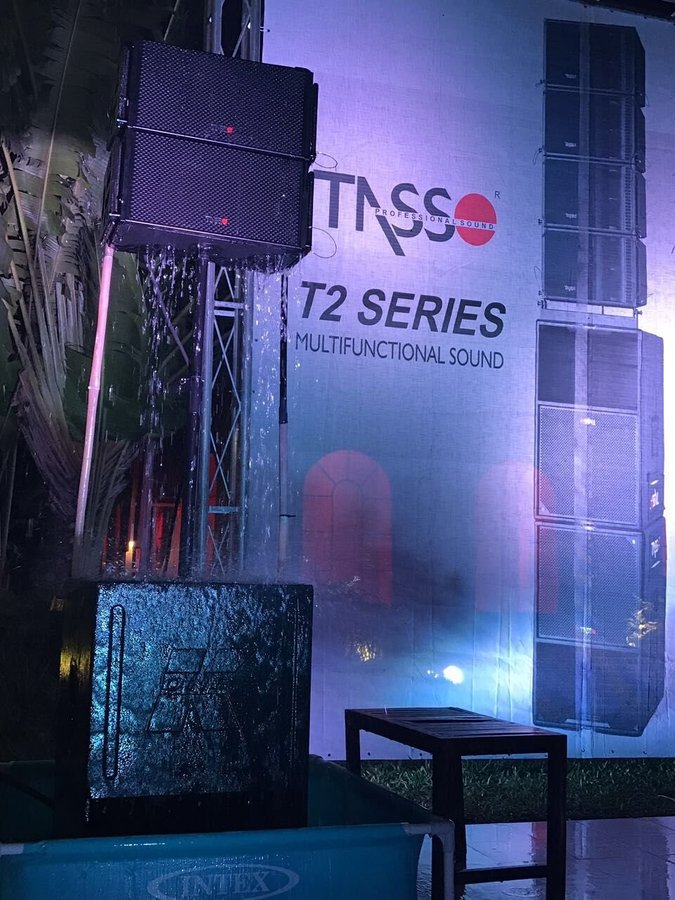

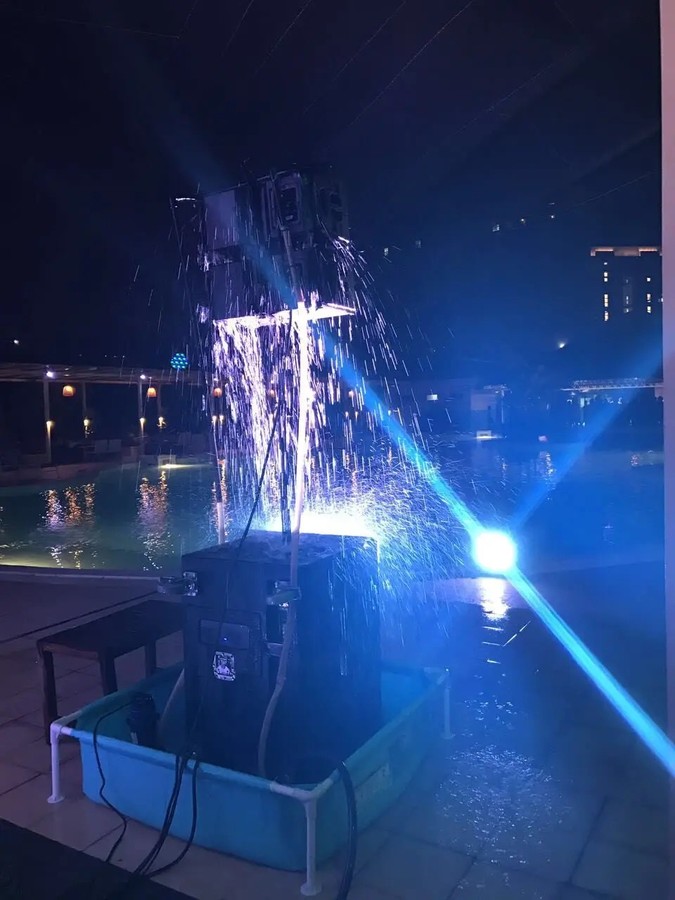

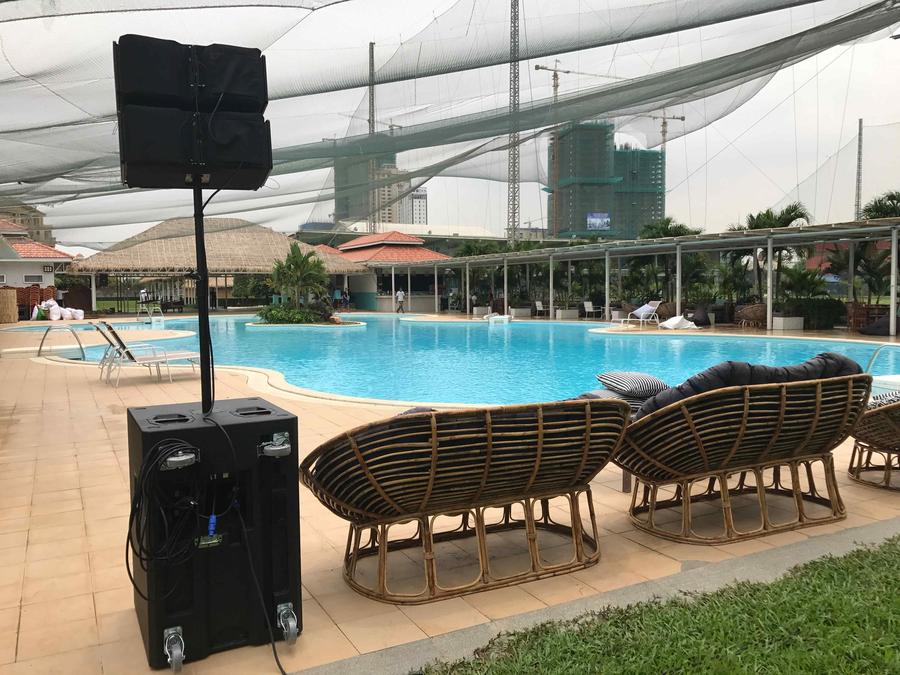

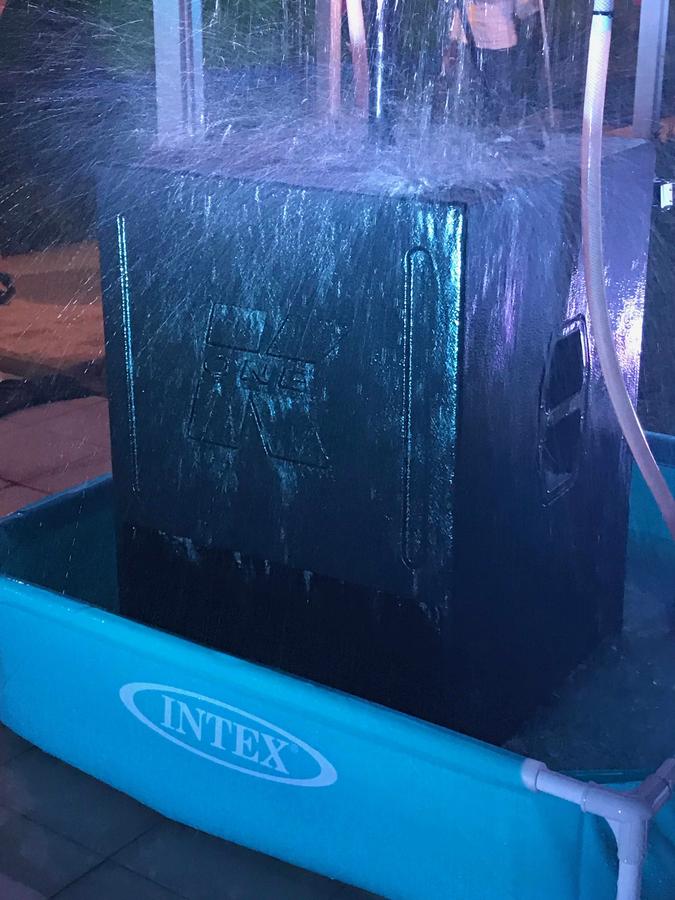

The video of the Waterproof K-ONE active speaker system in Phnom Penh Cambodia
| ● 2 tops can be packaged into 1 sub | ● UK Celesion HF tweeter |
|---|---|
| ● Waterproof surface treatment, all weather | ● Mobile live band show, multi-function hall, street music |
| Type | Long Throw Full Range |
| Component | LF:10"; HF:3" with horn |
| Nominal Impedance | 16Ω |
| RMS Power Handling | LF: 400W; HF: 150W |
| Peak Power Handling | LF: 800W; HF: 300W |
| Frequency Response | 55Hz-19KHz |
| Sensitivity (1W/1M) | 103dB |
| Max. SPL | 130dB |
| Dispersion | 120°H×10°V |
| Driving Mode | Bi-Amp |
| Crossover | 1.5KHz |
| Horn throat size | 1.4"(35mm) |
| Voice coil size | 3"(75mm) |
| Dimensions HWD (mm) | 278×540×314 |
| Shipping HWD (mm) | 368×610×390(0.09CBM) |
| NW/GW (Kg) | 22/25 |
| Sensitivity(1W/1M) | 104dB |
| AMP Output | 4×600W/8Ω RMS |
| DSP | Digital Power Amp. 2 In 4 Out DSP Module |
| Dispersions | N/A |
| Dimension HWD(mm) | 900×595×660 |
| NW(Kg) | 86 |

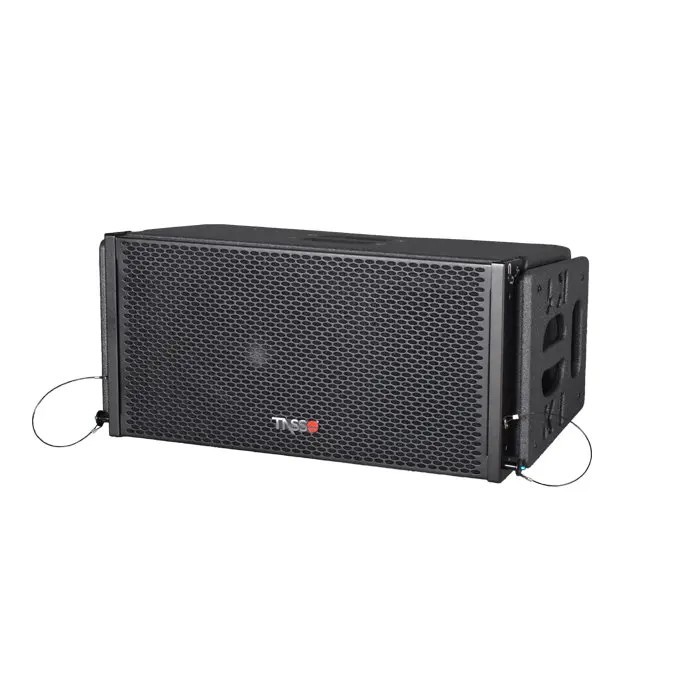

| K103 | ||
|---|---|---|
| Type / Component / Nominal Impedance / RMS Power Handling / Peak Power Handling / Frequency Response / Sensitivity（1W/1M） / Max. SPL / Dispersion / Driving Mode / Crossover / Horn throat size / Voice coil size / Dimensions HWD（mm） / Shipping HWD（mm） / NW/GW（Kg） | Long Throw Full Range / LF:10"; HF:3" with horn / 16Ω / LF: 400W; HF: 150W / LF: 800W; HF: 300W / 55Hz-19KHz / 103dB / 130dB / 120°H×10°V / Bi-Amp / 1.5KHz / 1.4"(35mm) / 3"(75mm) / 278×540×314 / 368×610×390(0.09CBM) / 22/25 | |

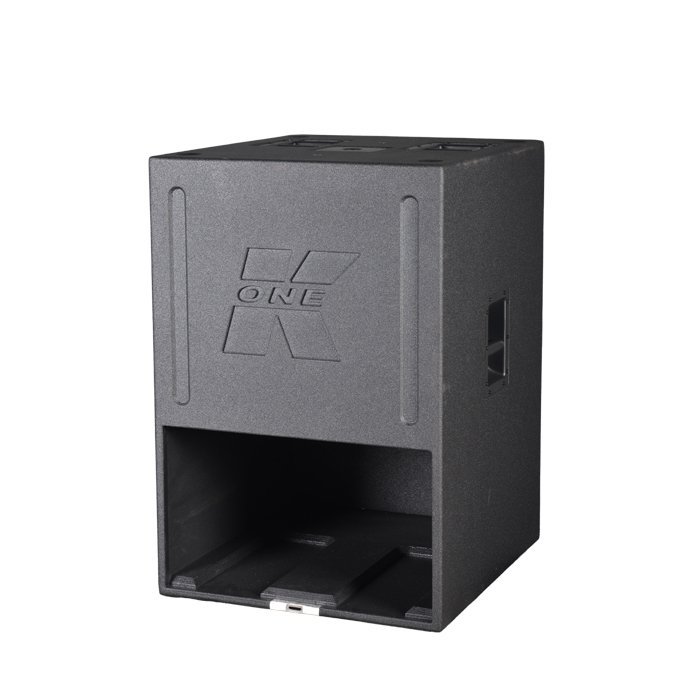

| K181A | ||
| Type / Component / Nominal Impedance / RMS Power Handling / Peak Power Handling / Frequency Response / Sensitivity(1W/1M) / Max. SPL / AMP Output / DSP / Dispersions / Dimension HWD(mm) / NW(Kg) | Active Sub Woofer With DSP / 18"×1 / 8Ω / 700W / 1400W / 35Hz-130Hz / 104dB / 133dB / 4×600W/8Ω RMS / Digital Power Amp. / 2 In 4 Out DSP Module / N/A / 900×595×660 / 86 |
Need K-ONE quoted?
Send quantities and your venue details — we reply with pricing, lead time and a coverage prediction.
