At a glance
full range · 2"full×8 + 1"highx1(powered by… · 8Ω · 122dB
| Type | full range |
|---|---|
| Component | 2"full×8 + 1"highx1(powered by Denmark driver) |
| Nominal Impedance | 8Ω |
| RMS Power Handling | 180W |
| Peak Power Handling | 360W |
| Frequency Response | 100Hz-20KHz |
| Sensitivity(1W/1M) | 96dB |
| Max. SPL | 122dB |
| Dispersions | 120ºH×25ºV |
| Dimension HWD(mm) | 65×95×570 |
| Shipping HWD(mm) | 120×250×620(0.02CBM/2pcs) |
| NW/GW (Kg) | 7/8.3(2pcs/ctn) |
| AMP Output | 900W+ 2×350W/8Ω Digital Power Amp |
| DSP | 2 In 4 Out DSP Module |

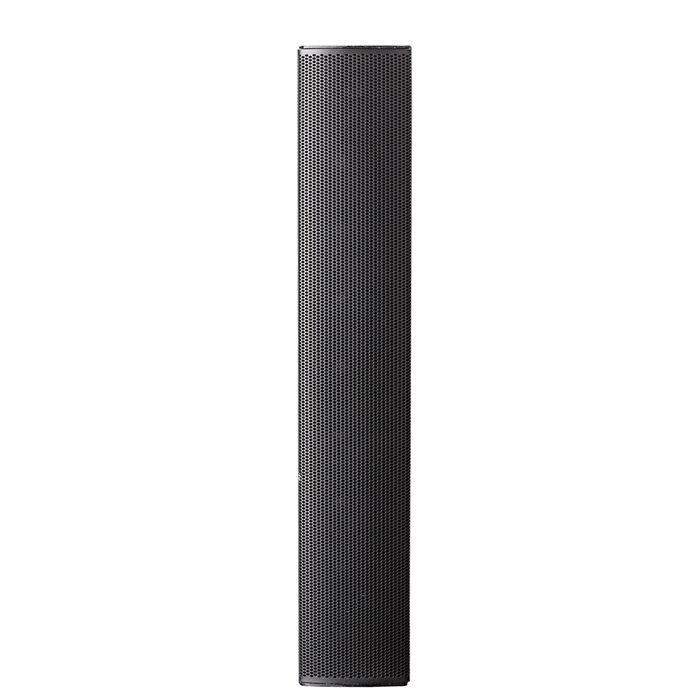

| Column Speaker System TL100S / TM209 | ||
|---|---|---|
| Type / Component / Nominal Impedance / RMS Power Handling / Peak Power Handling / Frequency Response / Sensitivity(1W/1M) / Max. SPL / Dispersions / Dimension HWD(mm) / Shipping HWD(mm) / NW/GW (Kg) | full range / 2"full×8 + 1"highx1(powered by Denmark driver) / 8Ω / 180W / 360W / 100Hz-20KHz / 96dB / 122dB / 120ºH×25ºV / 65×95×570 / 120×250×620(0.02CBM/2pcs) / 7/8.3(2pcs/ctn) |
| DSP12A | ||
|---|---|---|
| Type / Component / Nominal Impedance / RMS Power Handling / Peak Power Handling / Frequency Response / Sensitivity(1W/1M) / Max. SPL / AMP Output / DSP / Dispersions / Dimension HWD(mm) / Shipping HWD(mm) / NW/GW (Kg) | Self-powered Subwoofer with DSP / 12''x1 / 8Ω / 400W / 800W / 40Hz-250Hz / 103dB / 130dB / 900W+ 2×350W/8Ω / Digital Power Amp / 2 In 4 Out DSP Module / N/A / 431×388×500 / 525×470×590(0.15CBM) / 28.6/31.6 |
Also in Column Speakers
Column Speakers
HD-9
Line Source Column Speaker System
100Hz - 18kHz360W (1440W Peak)120° Horizontal x 15° Vertical
Need TL100S quoted?
Send quantities and your venue details — we reply with pricing, lead time and a coverage prediction.
