Description

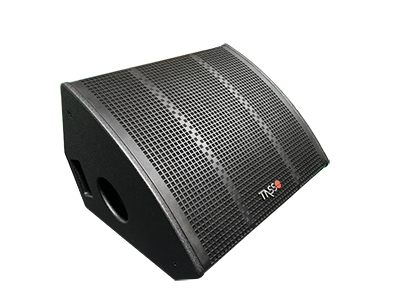

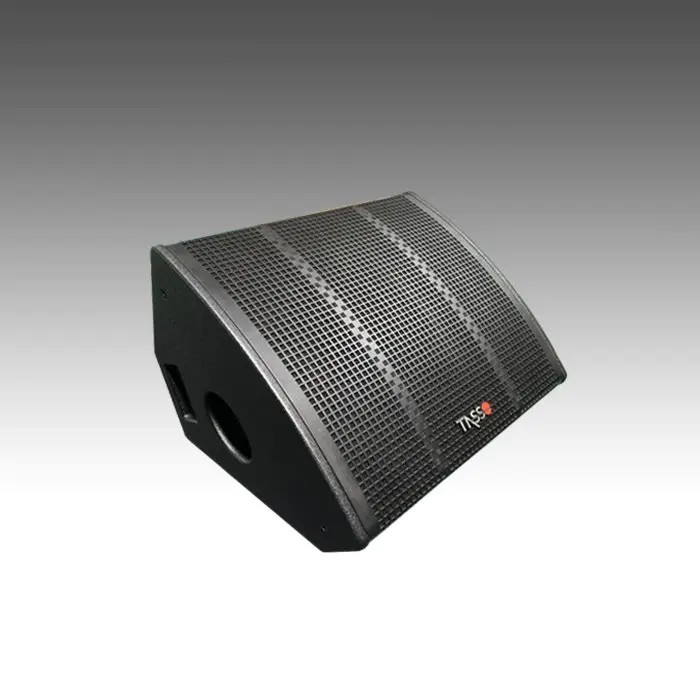

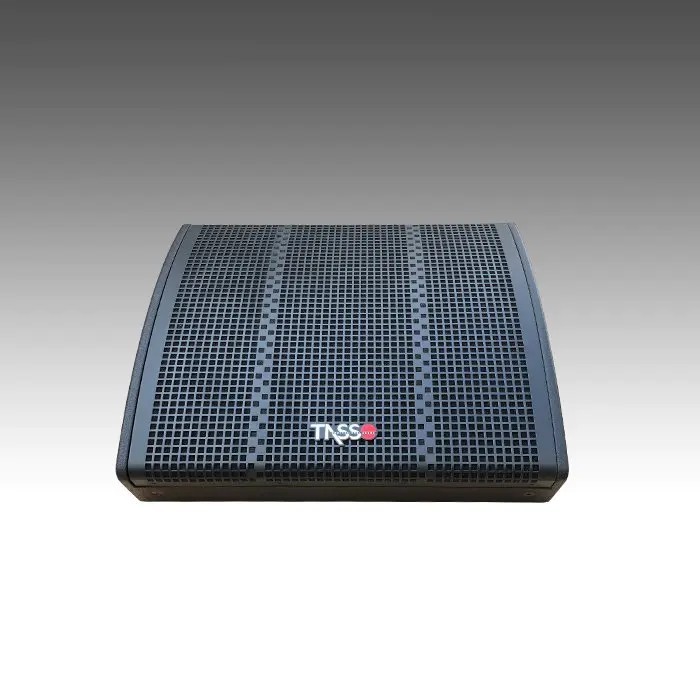

The M153 is a 2-way high-performance stage monitor with neodymium magnets which is consisted by UK imported Voice coils and hardware and customized UKM paper cap..It is coaxially designed to maximize the compactness of the cabinet and ensure accurate sound field pointing. The maximum sound pressure level can reach 140dB. It can provide a very strong moment of excitement for the musicians.

The M153 has a constant pointing diffusing angle of 50° x 70° (hxv) to accurately cover the stage area. When used for monitoring, two chutes extending from the rear of the cabinet to protect the bottom from scratching and Effectively avoid sliding of the box.

The M153 can also be used as a powerful main expansion system. The cabinet structure is made of sturdy marine plywood, coated with a layer of anti-collision paint, embedded with a pair of handles, and two M10 screw holes on each side panel for quick and flexible operation. For installation, there is also a jack for speaker stand mounting. For special installation applications, the M153's special drive aluminum alloy horn can be rotated in 45° increments to meet different sound field requirements.

15” driver with neodymium magnet coaxial 1.4” exit compression driver with 3” coil and horn

Model comparison
M153
Type / Component / Nominal Impedance / RMS Power Handling / Peak Power Handling / Frequency Response / MAX Sound pressure(1m,free field) / Nominal dispersion angle(h x v) / Dimension HWD(mm) / Shipping HWD(mm) / NW/GW(Kg)2-way stage monitor / 15” driver with neodymium magnet / coaxial 1.4” exit compression driver with 3” coil and horn / 8Ω / 500W / 2000W / 55-18KHZ / 138dB/140dB / 50º ×70º / 366x580x529mm / 466X680X629mm((0.19CBM) / 20/22KG
