At a glance

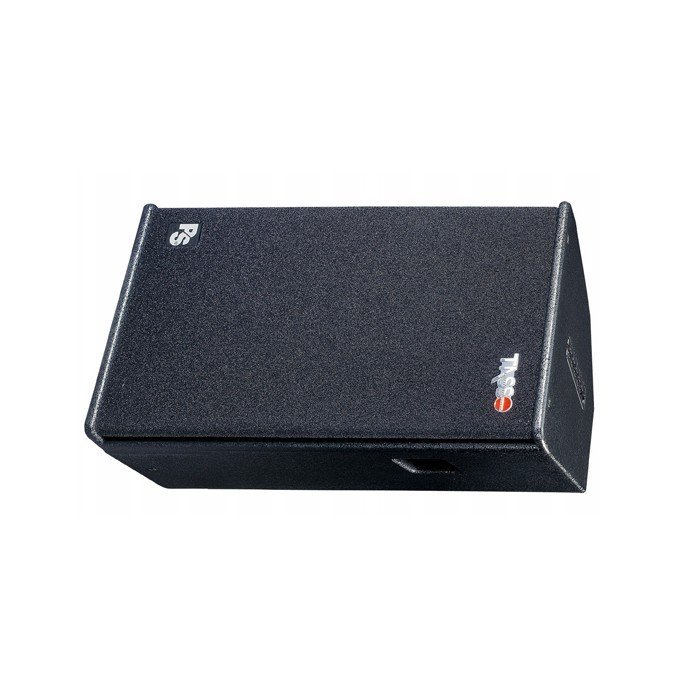

2-way full range · 12"+2"+ Horn · 8Ω · 126dB
| Type | 2-way full range |
|---|---|
| Component | 12"+2"+ Horn |
| Nominal Impedance | 8Ω |
| RMS Power Handling | 250W |
| Peak Power Handling | 500W |
| Frequency Response | 55Hz-20KHz |
| Sensitivity(1W/1M) | 102dB |
| Max. SPL | 126dB |
| Recommended Amp | I2 for 2pcs I3 for 4pcs |
| Dispersions | 50º -100º (H)×55º V |
| Horn throat size | 1"(25mm) |
| Voice coil size | 2"(44mm) |
| Crossover | 1.77KHz |
| Dimension HWD(mm) | 605×380×320 |
| Shipping HWD(mm) | 670×465×405 (0.13CBM) |
| NW/GW(Kg) | 20/23 |
