Description

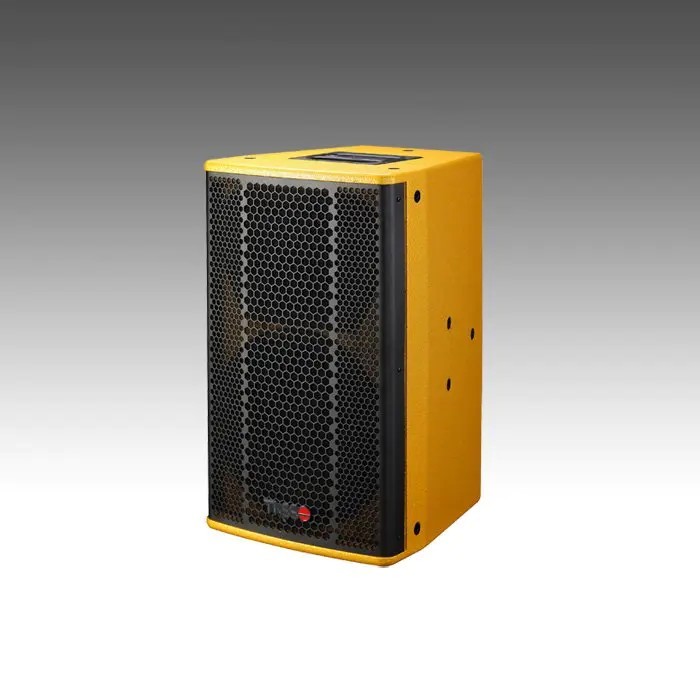

The KV12 is a compact and premium high-output full-range loudspeaker. Coverage whether used in the vertical or horizontal orientation. The high-order passive network minimizes band overlap.

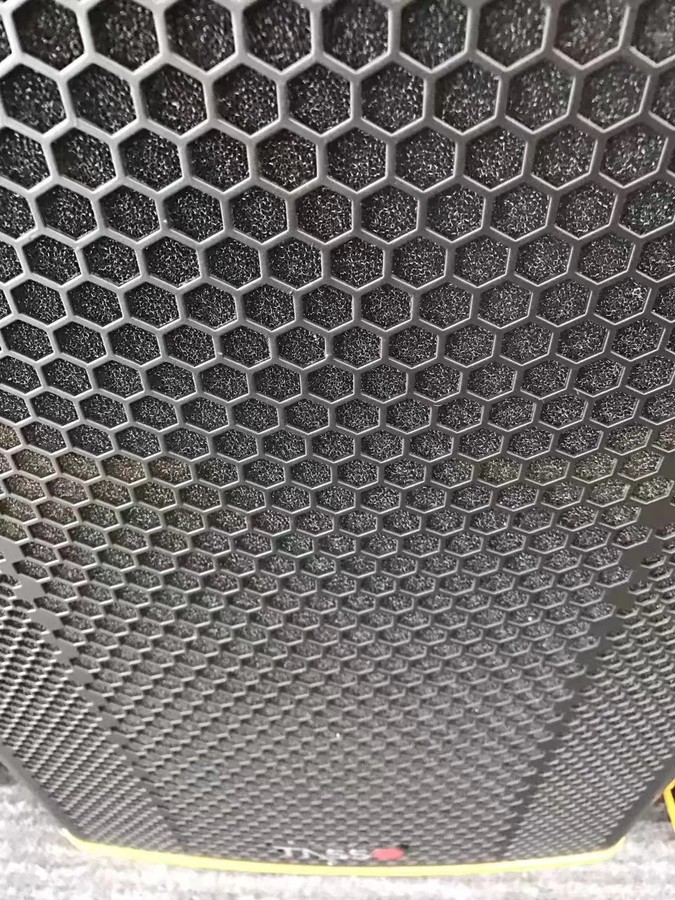

FEATURES · 12″ high efficiency woofer design · 2″ annular polymer diaphragm compression driver · Enclosure constructed of high quality plywood with rugged durable finish · 70° x 100° coverage pattern for even and smooth response on and off axis · Attractive cloth backed robust steel grille design · Precision engineered crossover for optimal driver integration
APPLICATIONS · Karaoke sound reinforcement · Club live sound reinforcement · High-performance satellite speaker for use with subwoofers
| Type | 2-way full range |
|---|---|
| Component | 1x12”+2”+horn |
| Nominal Impedance | 8ohm |
| RMS Power Rating | 350W |
| Peak Power Rating | 600W |
| Frequency Response (±3 dB) | 47 Hz - 20 KHz |
| Sensitivity (1w @ 1m) | 97 Db |
| Maximum SPL | 125 dB |
| Dimension HWD(MM) | 470x430x675mm |
| N.W/G.W | 21/22.3KGS |
Need KV12 quoted?
Send quantities and your venue details — we reply with pricing, lead time and a coverage prediction.
