At a glance
Long Throw Full Range · LF:10"; HF:3" with horn · 16Ω · 130dB

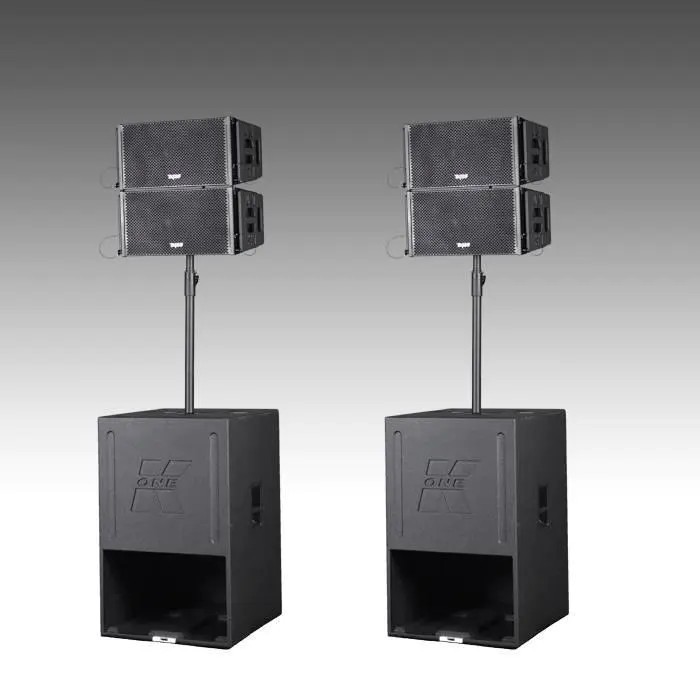

| ● 2 tops can be packaged into 1 sub | ● UK Celesion HF tweeter |
|---|---|
| ● Waterproof surface treatment, all weather | ● Mobile live band show, multi-function hall, street music |
| Type | Long Throw Full Range |
| Component | LF:10"; HF:3" with horn |
| Nominal Impedance | 16Ω |
| RMS Power Handling | LF: 400W; HF: 150W |
| Peak Power Handling | LF: 800W; HF: 300W |
| Frequency Response | 55Hz-19KHz |
| Sensitivity (1W/1M) | 103dB |
| Max. SPL | 130dB |
| Dispersion | 120°H×10°V |
| Driving Mode | Bi-Amp |
| Crossover | 1.5KHz |
| Horn throat size | 1.4"(35mm) |
| Voice coil size | 3"(75mm) |
| Dimensions HWD (mm) | 278×540×314 |
| Shipping HWD (mm) | 368×610×390(0.09CBM) |
| NW/GW (Kg) | 22/25 |
| K103 | ||
|---|---|---|
| Type / Component / Nominal Impedance / RMS Power Handling / Peak Power Handling / Frequency Response / Sensitivity（1W/1M） / Max. SPL / Dispersion / Driving Mode / Crossover / Horn throat size / Voice coil size / Dimensions HWD（mm） / Shipping HWD（mm） / NW/GW（Kg） | Long Throw Full Range / LF:10"; HF:3" with horn / 16Ω / LF: 400W; HF: 150W / LF: 800W; HF: 300W / 55Hz-19KHz / 103dB / 130dB / 120°H×10°V / Bi-Amp / 1.5KHz / 1.4"(35mm) / 3"(75mm) / 278×540×314 / 368×610×390(0.09CBM) / 22/25 |
Need K103 quoted?
Send quantities and your venue details — we reply with pricing, lead time and a coverage prediction.
