Description

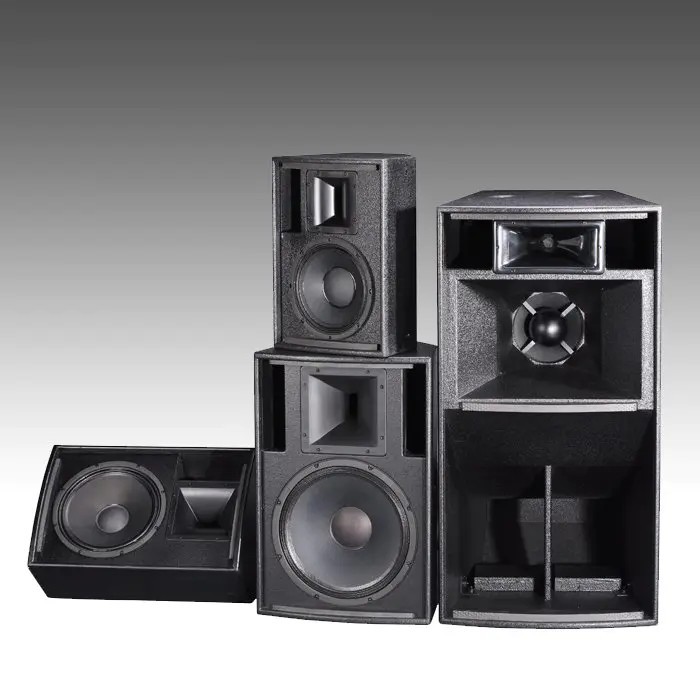

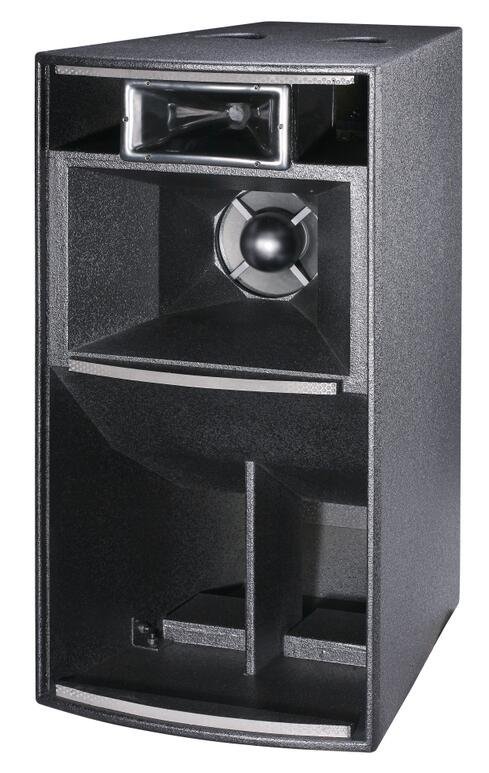

CT Series launch for large live performance, club, disco, bar and KTV room, loaded a rotatable horn to be converted both in horizontal & vertical. CT100 and CT300 powered by Celestion HF drivers.
| Type | 3-way full range Powered by Celestion driver |
|---|---|
| Component | 15"+10"with horn+ 2"with Horn |
| Nominal Impedance | 8Ω |
| RMS Power Handling | LF:500W; M/HF:400W |
| Peak Power Handling | LF:1000W; M/HF:1800W |
| Frequency Response | 50Hz-20KHz |
| Sensitivity(1W/1M) | LF:108dB; MF:110dB; HF:112dB |
| Max. SPL | LF:138dB; MF:140dB; HF:142dB |
| Recommended Amp | I1 for 2pcs M/HF I4 for 2pcs LF |
| Dispersion | 70ºH×40º V |
| Horn throat size | 1"(25mm) |
| Voice coil size | 2"(44mm) |
| Crossover | 1.8KHz |
| Dimension HWD(mm) | 1066×560×780 |
| Shipping HWD(mm) | 1130×635×840 (0.60CBM) |
| NW/GW(Kg) | 72.5/77.5 |
| CT1000 | ||
|---|---|---|
| Type / Component / Nominal Impedance / RMS Power Handling / Peak Power Handling / Frequency Response / Sensitivity(1W/1M) / Max. SPL / Recommended Amp / Dispersion / Horn throat size / Voice coil size / Crossover / Dimension HWD(mm) / Shipping HWD(mm) / NW/GW(Kg) | 3-way full range / Powered by Celestion driver / 15"+10"with horn+ 2"with Horn / 8Ω / LF:500W; M/HF:400W / LF:1000W; M/HF:1800W / 50Hz-20KHz / LF:108dB; MF:110dB; HF:112dB / LF:138dB; MF:140dB; HF:142dB / I1 for 2pcs M/HF / I4 for 2pcs LF / 70ºH×40º V / 1"(25mm) / 2"(44mm) / 1.8KHz / 1066×560×780 / 1130×635×840 (0.60CBM) / 72.5/77.5 |
